Aligned field of view
A direct overhead perspective for external surgical-field visualization.
SURGICAL IN-LIGHT CAMERA
Wireless Center-Mounted Surgical Light Camera
Installed at the center of a compatible surgical light, the camera provides a direct overhead view for live display, recording, teaching and OR integration. Also referred to as an integrated surgical-light camera or in-light surgical camera, each mechanical structure is matched to the specific light platform.

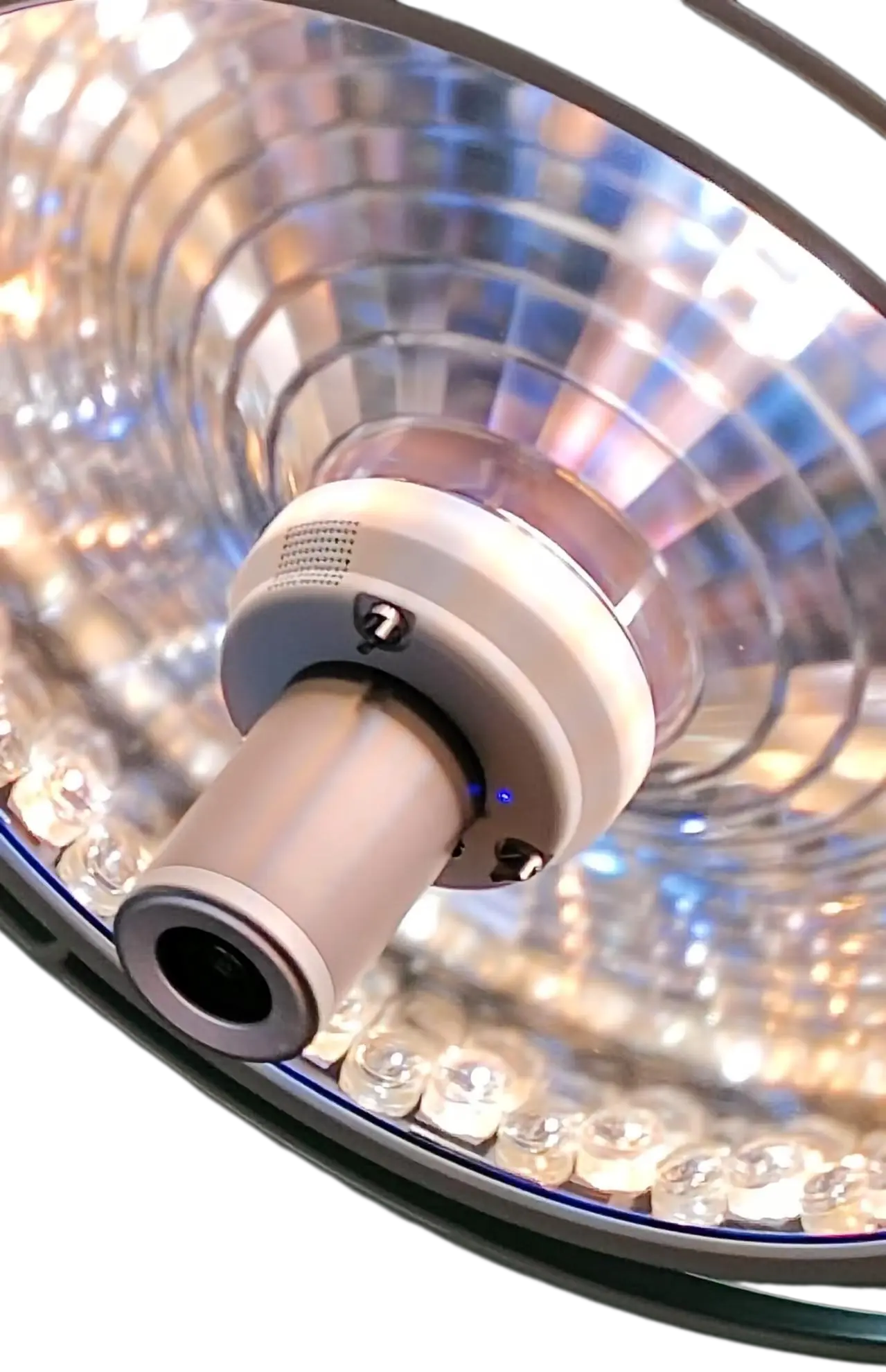

CENTER-MOUNTED IN THE LIGHT HEAD
SYSTEM COMPONENTS
The camera housing and mechanical interface vary by surgical-light brand, model, generation and center-handle structure.
THE VIEW MOVES WITH THE LIGHT
An overhead perspective built into the existing OR workflow.
Installed at the light head’s central position, the camera remains aligned with the illuminated working area as the surgical light is repositioned.
Cleaner room layout
Avoids adding a separate ceiling camera arm when the light platform is suitable.
Wireless video path
Reduces the need to route a moving video cable through the light suspension.
Ready for the workflow
Connect the receiver to a display, 4K medical video recorder or compatible OR integration system.

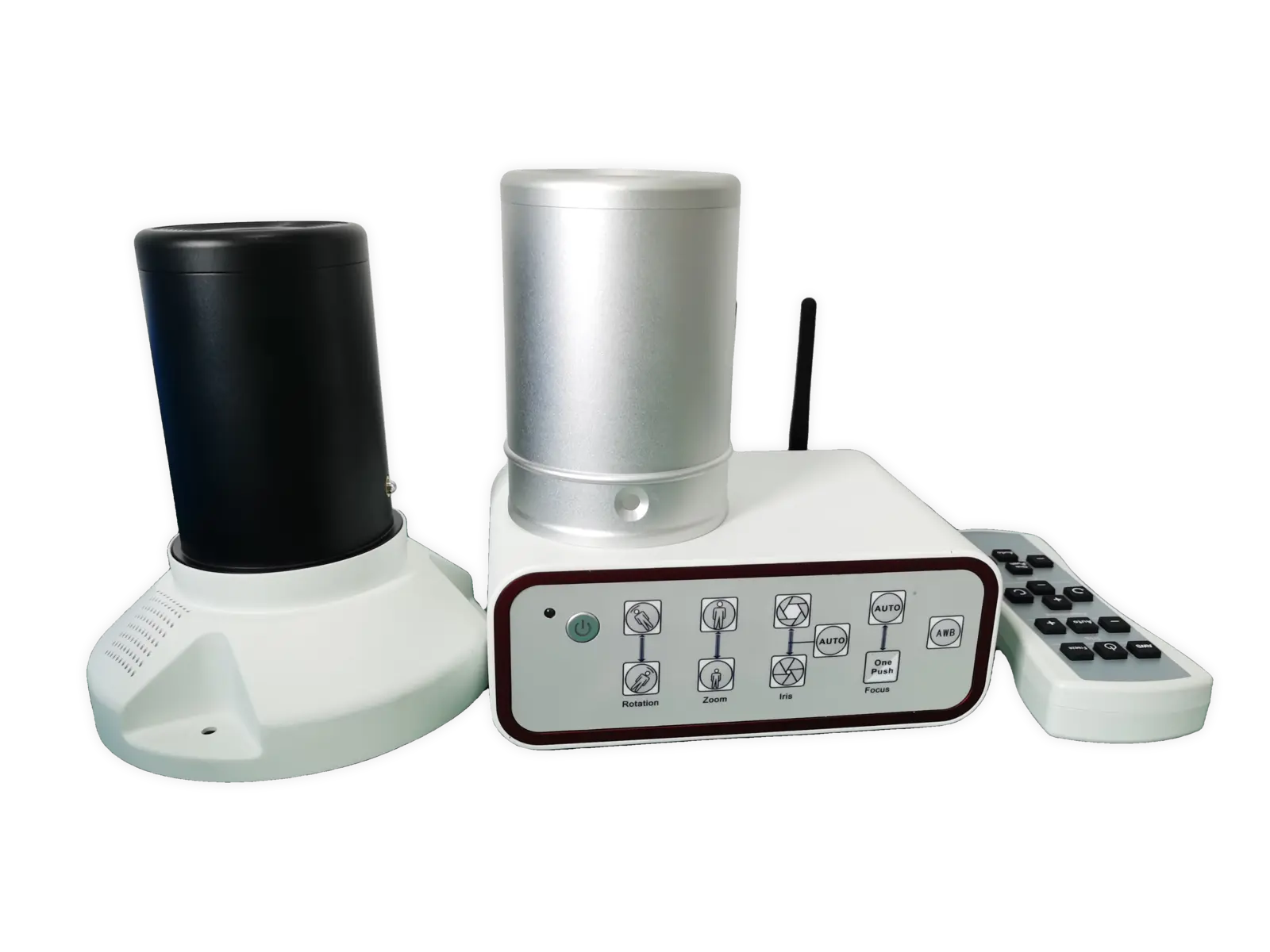

SYSTEM COMPONENTS
A complete wireless camera system for surgical-light integration.
The system combines the matched center-mounted camera with the accessories required for sterile handling, wireless video reception and camera control.

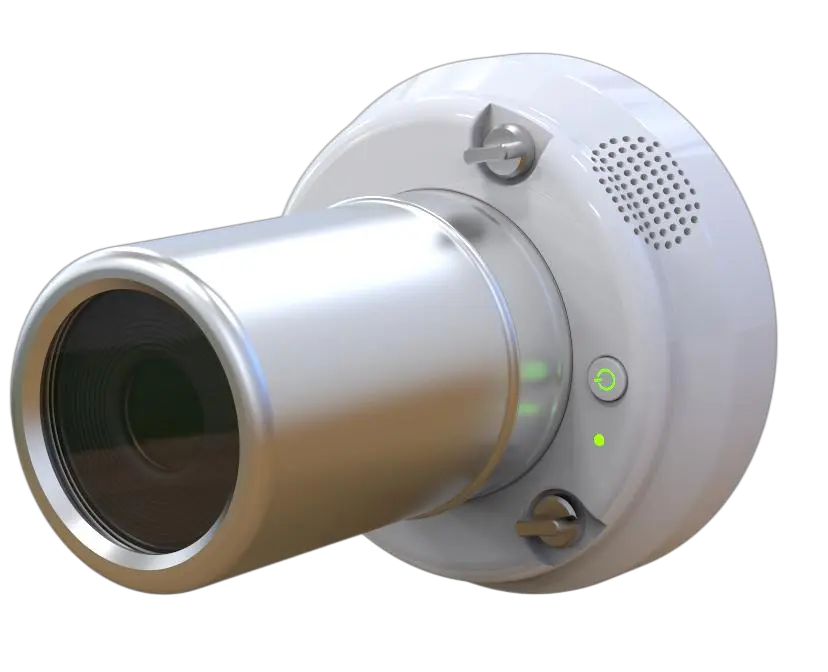

01Camera
02Reusable Aluminum Sterilization Cover

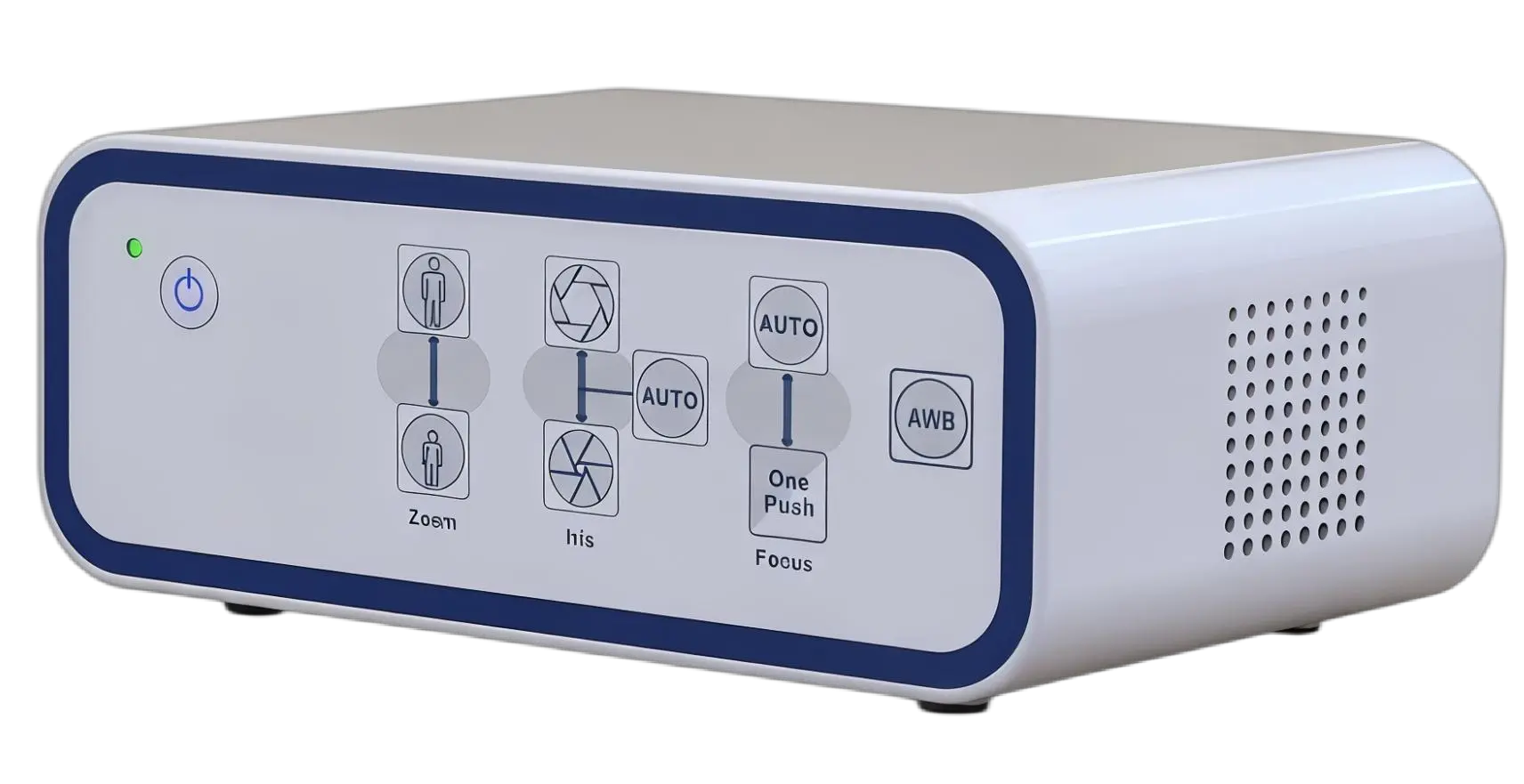

03Wireless Receiver
04Wireless Remote Control

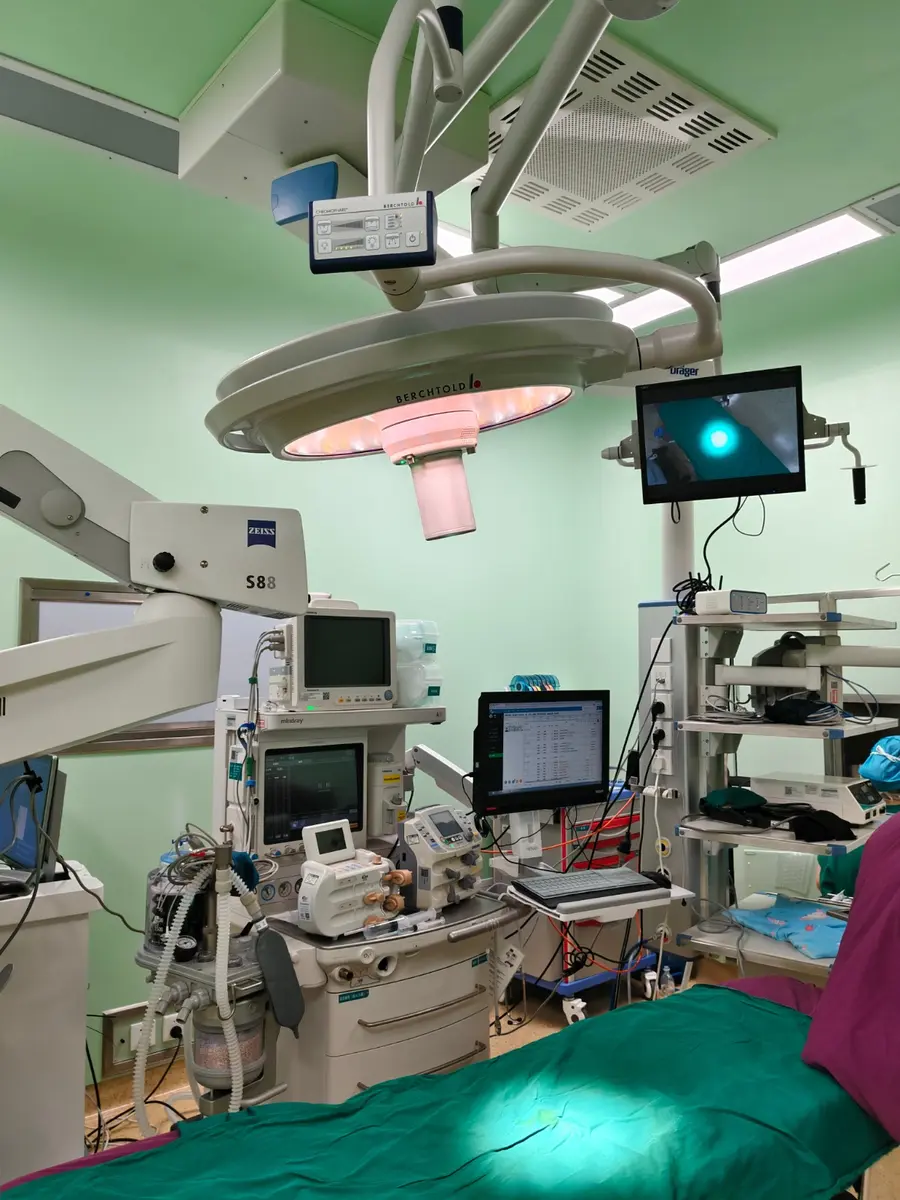

INSTALLATION EXAMPLE
Integrated into the center of the surgical light.
This real installation shows the camera mounted in the light head’s central position, replacing the conventional center-handle assembly while maintaining an overhead view of the illuminated surgical field.
Matched mechanical structureThe camera housing and adapter are selected according to the exact light model.
View follows light positioningRepositioning the surgical light also repositions the camera’s overhead viewing direction.
Existing OR video workflowThe wireless receiver can connect to a monitor, recorder or compatible OR video system.
BROAD PLATFORM COMPATIBILITY
Most mainstream surgical-light platforms are already covered.
Center-mounted cameras are not mechanically universal. We confirm the exact surgical-light model before quotation and supply the corresponding matched structure.
Examples of adapted surgical-light brands
Our compatibility library includes selected light platforms from leading manufacturers, allowing many projects to move directly from model confirmation to product supply.
KLS MARTIN
BERCHTOLD
SIMEON
MAQUET
Compatibility is confirmed by exact light model and generation. Brand inclusion does not mean every model uses the same mechanical interface.
Your light model is already supported
For surgical-light platforms already in our adaptation library, we can provide the matched camera structure without repeating the mechanical design process.
- Confirm brand, exact model and light-head photos
- Match the existing camera housing and interface
- Confirm wireless resolution and receiver connection
- Proceed to configuration, quotation and production
Your light model is new to us
Our engineering team can design a model-specific mechanical solution for a new surgical-light structure, subject to technical evaluation.
- Review center-handle structure, dimensions and load conditions
- Design housing, adapter and mechanical interface
- Prototype and confirm fit with the light manufacturer or partner
- Support OEM / ODM production after validation
Compatibility Note: Each camera structure is matched and verified according to the specific surgical-light model to ensure proper installation, movement and normal light operation.
CHOOSE THE VIDEO PRIORITY
Wireless 1080p60 or wireless 4K30.
Both specifications support an in-light overhead workflow. Choose according to motion smoothness, display resolution, recording needs and project budget.
1080p Wireless
1920 × 1080 @ 60 fps
A practical option for smooth real-time observation, teaching rooms and standard HD recording workflows.
Best forSmooth live video
Typical workflowDisplay / record / teach
TransmissionWireless receiver
FitModel-specific
4K Wireless
3840 × 2160 @ 30 fps
Higher image detail for 4K displays, surgical documentation and premium OR integration projects.
Best forMaximum visible detail
Typical workflow4K display / record / teach
TransmissionWireless receiver
FitModel-specific
MODEL CONFIRMATION WORKFLOW
From a light model to the correct camera structure.
A short compatibility check prevents incorrect assumptions and keeps the project quotation accurate.
Identify the light
Share brand, exact model, manufacturing generation and installation country.
Send reference photos
Front, rear and side views of the light head, plus the center handle or camera interface.
Confirm the path
We check our existing adaptation library or define a new engineering project.
Finalize configuration
Select 1080p60 or 4K30, receiver connection, quantity and project documents.
FOR LIGHT MANUFACTURERS & DISTRIBUTORS
OEM / ODM camera integration for a new surgical-light platform.
We can support camera-module integration, exterior and mechanical design, wireless video configuration and production for partners developing or upgrading a surgical-light product family.
Project inputs
- MechanicalCenter structure, envelope, mounting, rotation and load
- ElectricalAvailable power, internal space and receiver placement
- Video1080p60 or 4K30, display and recording workflow
- Industrial designHousing language, color, logo and surface treatment
- CommercialTarget quantity, sample plan and project schedule
FAQ
Questions before compatibility confirmation.
Can one camera structure fit every surgical light?
No. The center structure, handle interface, internal space, power method and load conditions vary across brands, models and generations. We confirm the exact light model before supply.
What if you have already adapted our surgical light?
After verifying the exact model and photos, we can select the corresponding existing design and prepare the correct camera configuration without repeating the structural design stage.
Can you develop a version for a new light model?
Yes. OEM / ODM adaptation is available after technical evaluation. Drawings, samples or detailed interface measurements may be required for reliable design and validation.
Which video specification should we choose?
Choose 1080p60 when smooth motion and standard HD workflows are the priority. Choose 4K30 when higher visible detail and 4K recording or display are more important.
Does the camera include a surgical light?
No. This page describes the camera system and the matched integration structure. The surgical light is normally supplied by the hospital, distributor or light manufacturer unless a separate project scope is confirmed.
What should we send for a compatibility check?
Please provide the surgical-light brand, exact model, clear photos of the light head and center handle area, quantity, country, preferred resolution and intended display or recording connection.
START WITH THE LIGHT MODEL
Check compatibility before quotation.
Share your application, preferred video specification, estimated quantity and contact information. We will contact you to confirm the surgical-light brand, exact model and compatibility details.
- Application and project type
- 1080p60 or 4K30 preference
- Estimated quantity
- Country and contact information
