4K Stabilized Surgical Head Camera System for Surgeon POV Imaging

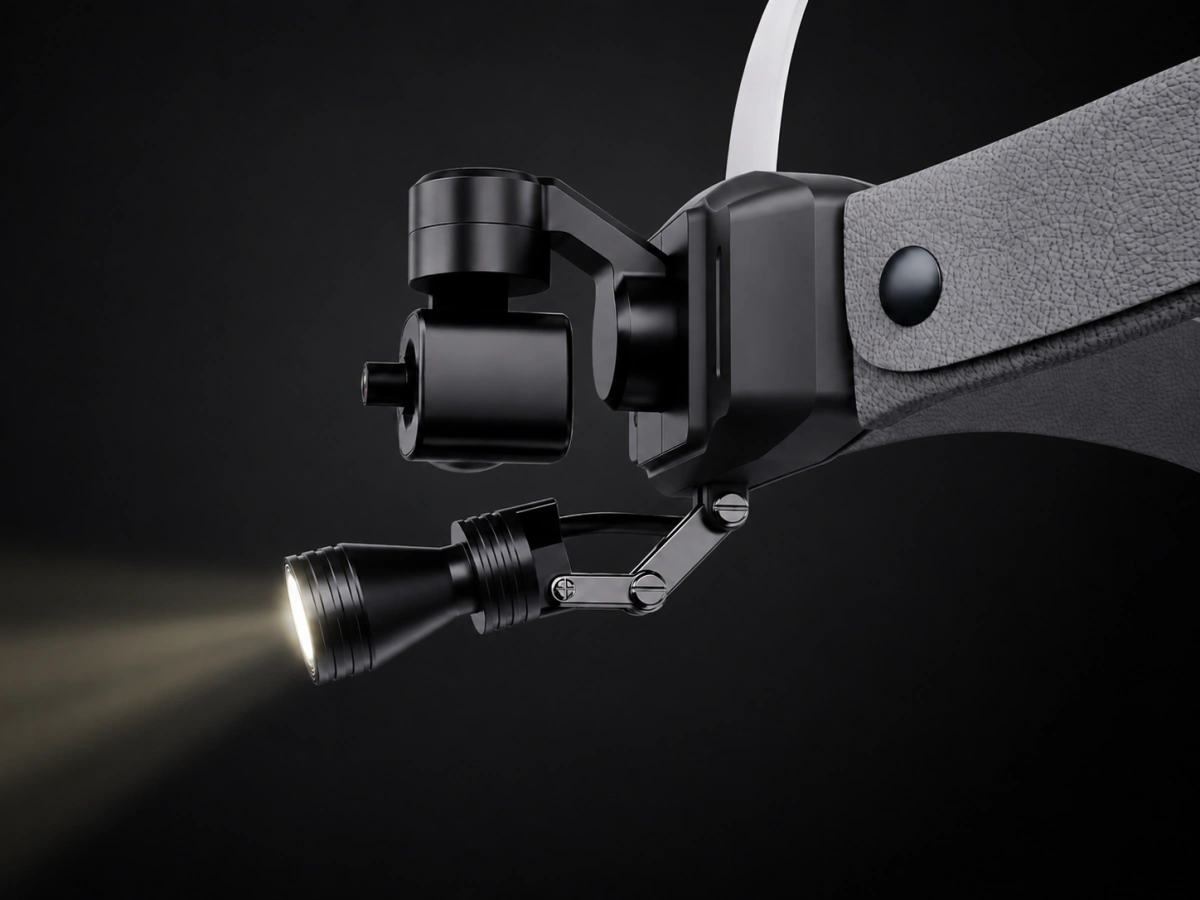

A surgical head-mounted camera is a wearable point-of-view imaging system used to record the surgeon’s real working view during open or near-field procedures. Unlike a room-mounted camera, it follows the surgeon’s head movement and captures the operating field from the operator’s perspective. The SMO 4K Stabilized Surgical Head Camera combines a surgical headlight, stabilized 4K imaging, local recording, HDMI output, and remote-control workflow for teaching, documentation, and evaluation.

Yes. “Surgical head-mounted camera” is the more standard term, while some users search for “surgical head mount camera” or “head mounted surgical camera.” These terms usually describe a wearable surgical camera system that records first-person surgical video from the surgeon’s viewpoint. On this page, SMO Medical uses the standard term surgical head-mounted camera while also supporting common search wording used by hospitals, surgeons, and distributors.

It is mainly used for first-person surgical video recording, clinical teaching, case documentation, post-case review, and product evaluation where the surgeon’s real working view is important. The system is especially useful when a fixed operating room camera cannot clearly capture hand movement, working angle, and near-field details. It helps surgeons and teaching teams record a practical view that is closer to what the operator sees during the procedure.

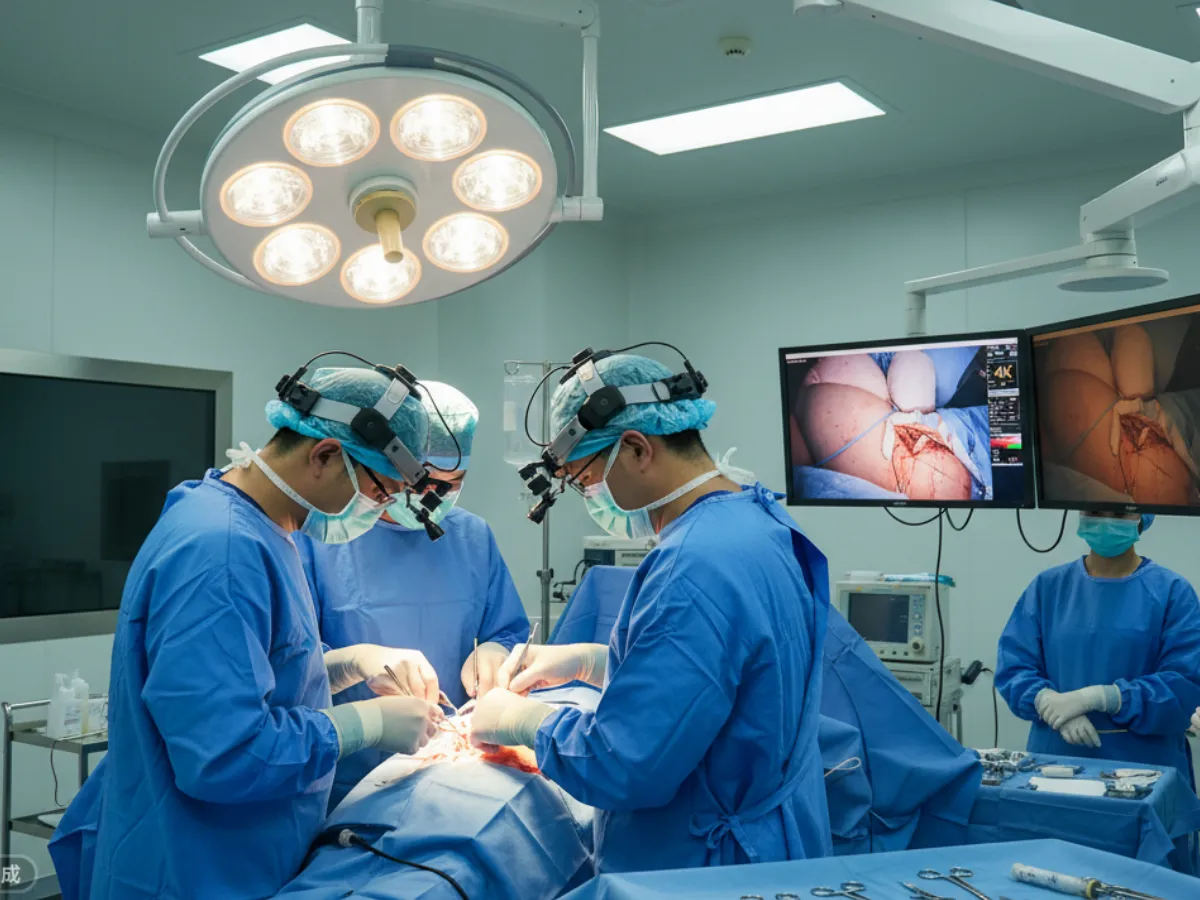

A room camera or ceiling-mounted operating room camera records from a fixed position, so the view may be blocked by the surgeon, assistants, instruments, or the operating light. A surgical head camera records from the surgeon’s point of view and moves with the operator, making it easier to capture the working field, hand movement, and real operating angle. For many teaching and documentation scenarios, the two systems can also be used together.

Yes. The system supports 4K surgical video recording for teaching, documentation, case review, and clinical evaluation. 4K image capture helps preserve more detail in near-field surgical scenes, especially when reviewing fine movements, instrument handling, or anatomical structures after the procedure. Actual image quality also depends on working distance, lens selection, lighting conditions, display equipment, and the recording workflow used by the hospital or evaluation team.

Yes. The system supports real-time HDMI output for connection to a surgical monitor, external recorder, teaching display, or operating room video system. HDMI output is useful when a low-latency, stable video signal is needed for demonstration, evaluation, or internal teaching. Overall latency and display quality may still depend on the downstream monitor, recorder, capture card, or video integration equipment used in the operating room.

Wireless preview is available in the Advanced and AI configurations. It can be useful for setup, demonstration, teaching, and quick evaluation when a wired monitor is not convenient. For critical real-time display or high-quality recording workflows, HDMI output and local 4K recording are usually recommended. Wireless image quality and delay may vary depending on the environment, receiving device, signal conditions, and selected transmission mode.

Yes. Oral and maxillofacial surgery is one of the typical application scenarios for this type of surgical head-mounted camera. The system can help record close-field work such as oral surgery, jaw surgery, implant-related procedures, facial procedures, and teaching demonstrations where the operating angle changes frequently. For best results, the working distance, lens depth of field, lighting angle, and surgeon comfort should be confirmed during product evaluation.

It can be suitable for selected deep-field or narrow-field open procedures when the surgeon’s viewpoint provides a clearer working angle than a room camera. The system uses selectable fixed-focus lens options and integrated illumination to support near-field surgical recording. For deep surgical fields, evaluation should confirm whether the field of view, depth of field, lighting, and working distance match the intended specialty and procedure type.

Yes. The system is designed for surgical teaching, documentation, case review, and internal clinical communication. First-person recording helps trainees understand hand position, instrument movement, operating angle, and workflow decisions that may be difficult to capture with a ceiling-mounted camera alone. Hospitals, clinics, and teaching teams can use the footage for training review, procedure explanation, demonstration, and structured evaluation of the surgeon-view recording workflow.

The control box includes a built-in 5000 mAh lithium battery. Typical runtime is up to about 6 hours, depending on configuration, recording mode, wireless transmission use, lighting conditions, and actual workflow. For longer evaluation sessions or continuous demonstration, users can plan charging intervals, prepare external power support if appropriate, or discuss the intended usage scenario with SMO Medical before confirming the final configuration.

The system uses a fixed-focus lens with manual focus adjustment rather than continuous autofocus. This design helps maintain a stable focus setting during surgical recording and avoids unwanted focus hunting in complex surgical scenes. Different depth-of-field lens options can be selected according to the typical working distance and application. During evaluation, the lens choice should be matched to the specialty, procedure type, and preferred recording distance.

Basic is suitable for standard 4K recording and HDMI documentation workflows. Advanced is recommended for most hospital reviews, surgeon demonstrations, and distributor evaluations because it adds Wi-Fi wireless transmission and a 2.4G joystick remote. The AI version is project-based and adds external AI-assisted positioning or tracking options. The right version depends on whether you need wireless preview, remote operation, assisted tracking, or a complete evaluation package.

It is not intended to replace every ceiling-mounted operating room camera. Instead, it works as a complementary surgeon-view recording system. A ceiling camera can provide a general room or surgical field view, while a head-mounted surgical camera captures the operator’s real point of view. For teaching, documentation, and product evaluation, using both perspectives can provide a more complete understanding of the procedure and workflow.

You can contact SMO Medical with your country or region, hospital or company name, specialty, intended application, target version, quantity, and whether you need a brochure, datasheet, demo video, distributor pricing, or complete configuration list. Based on this information, we can recommend the suitable version, provide quotation guidance, share relevant product documents, and discuss international shipping, remote support, or evaluation arrangements.
